¶ Adjust Y-Axis Gear & Rack Clearance (Zero-End) – Tyvok S1

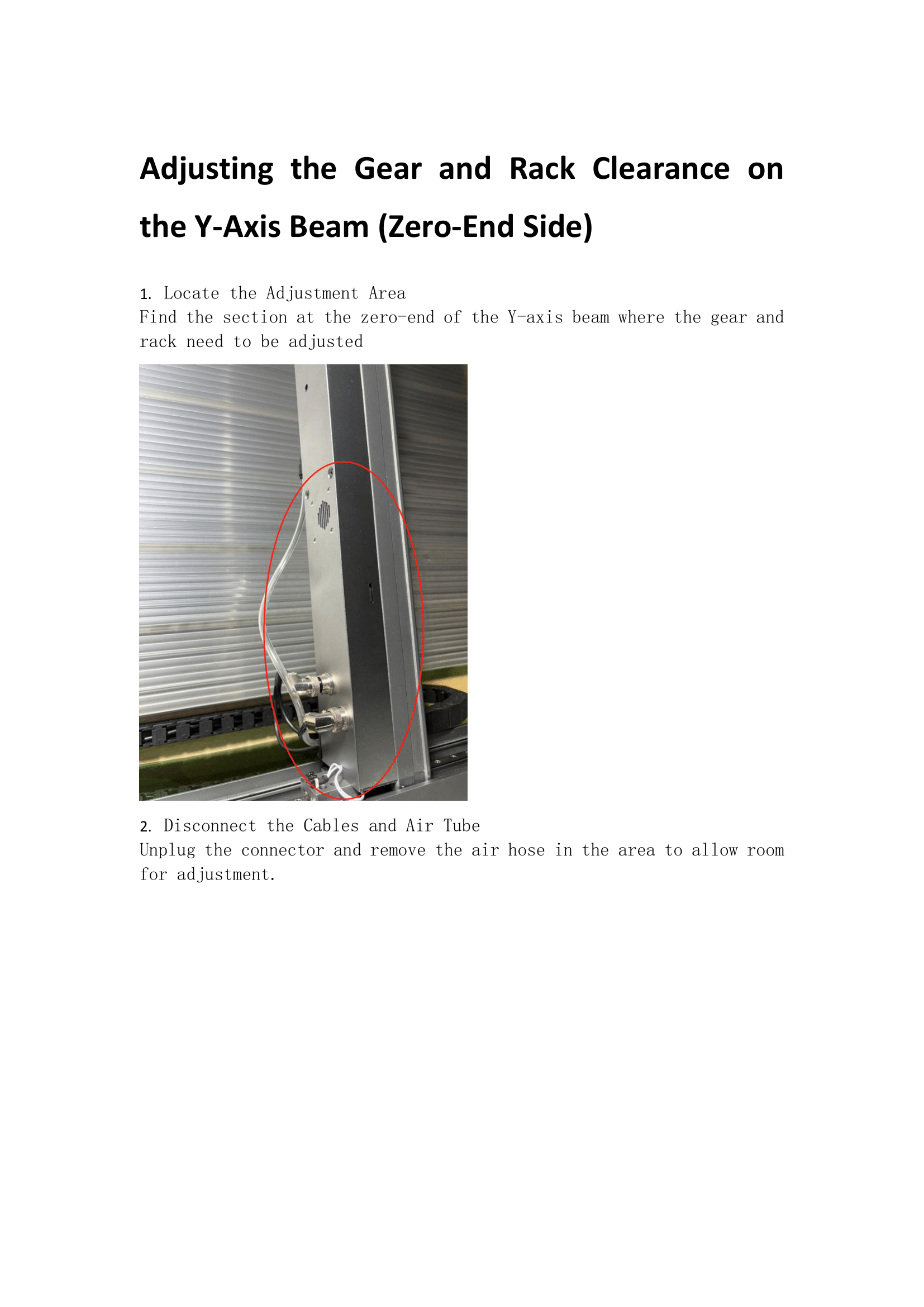

¶ 1. Locate the Adjustment Area
¶ 2. Disconnect the Cables and Air Tube
-1.png)

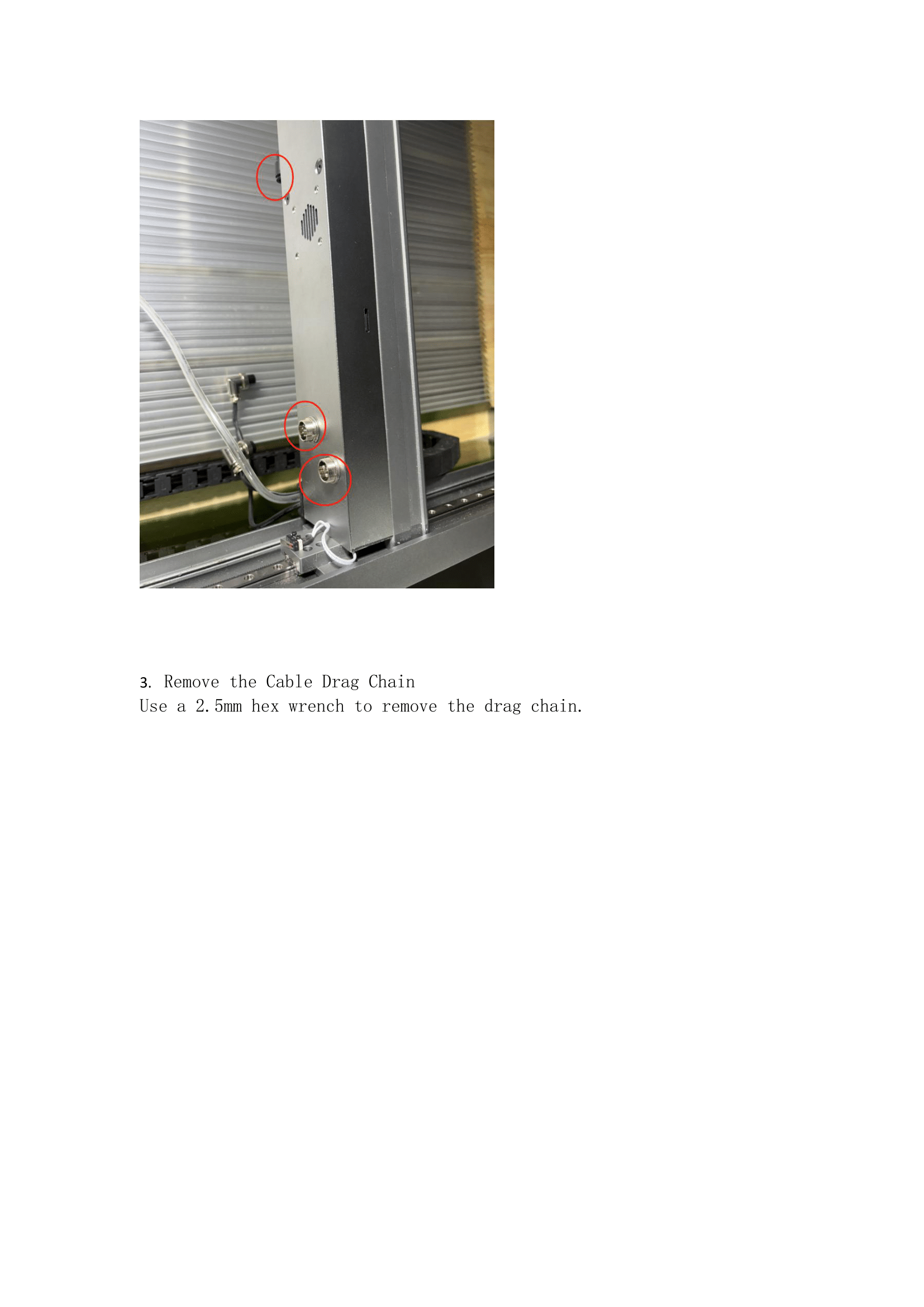

¶ 3. Remove the Cable Drag Chain
-2.png)

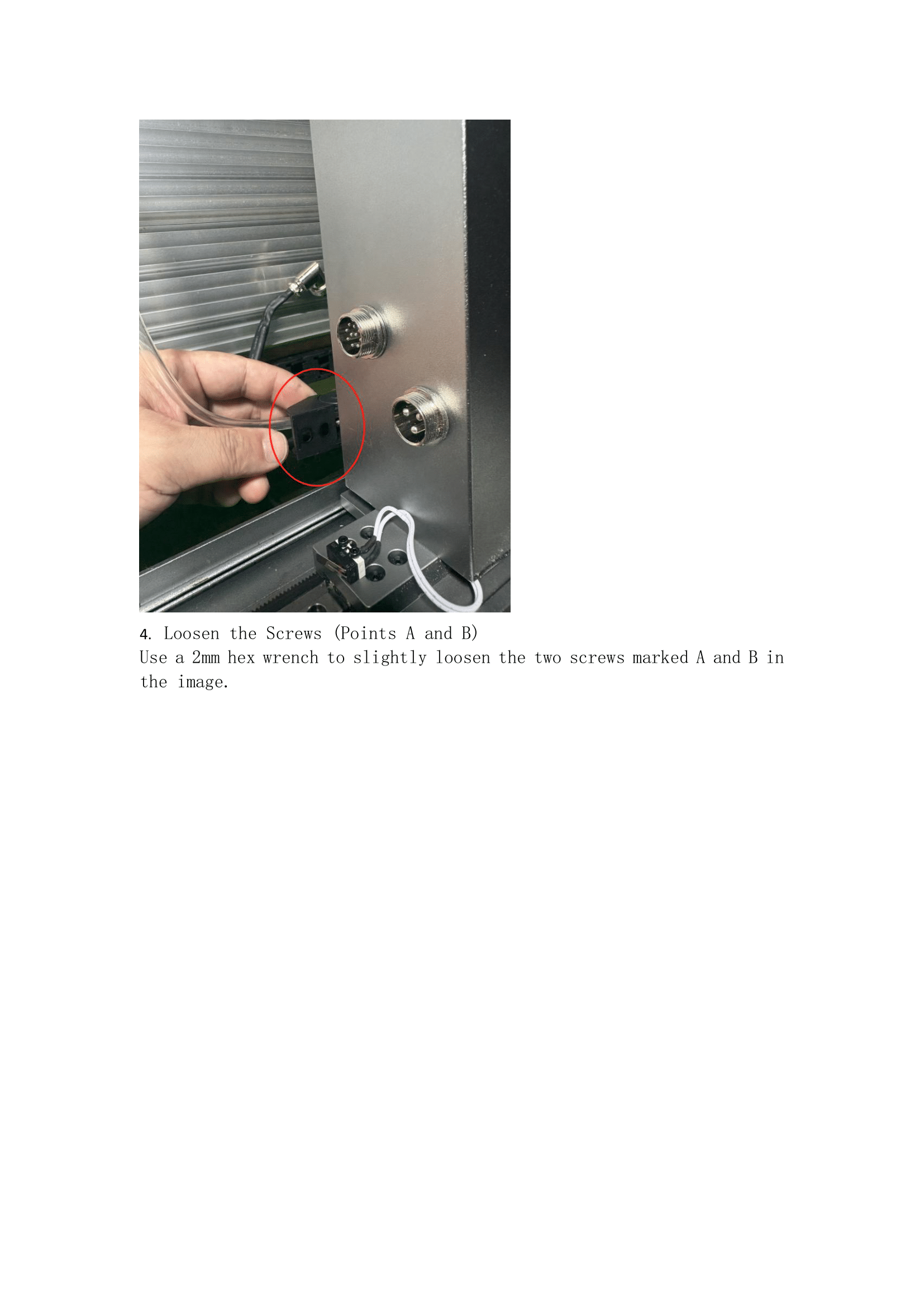

¶ 4. Loosen the Screws (Points A and B)
-3.png)

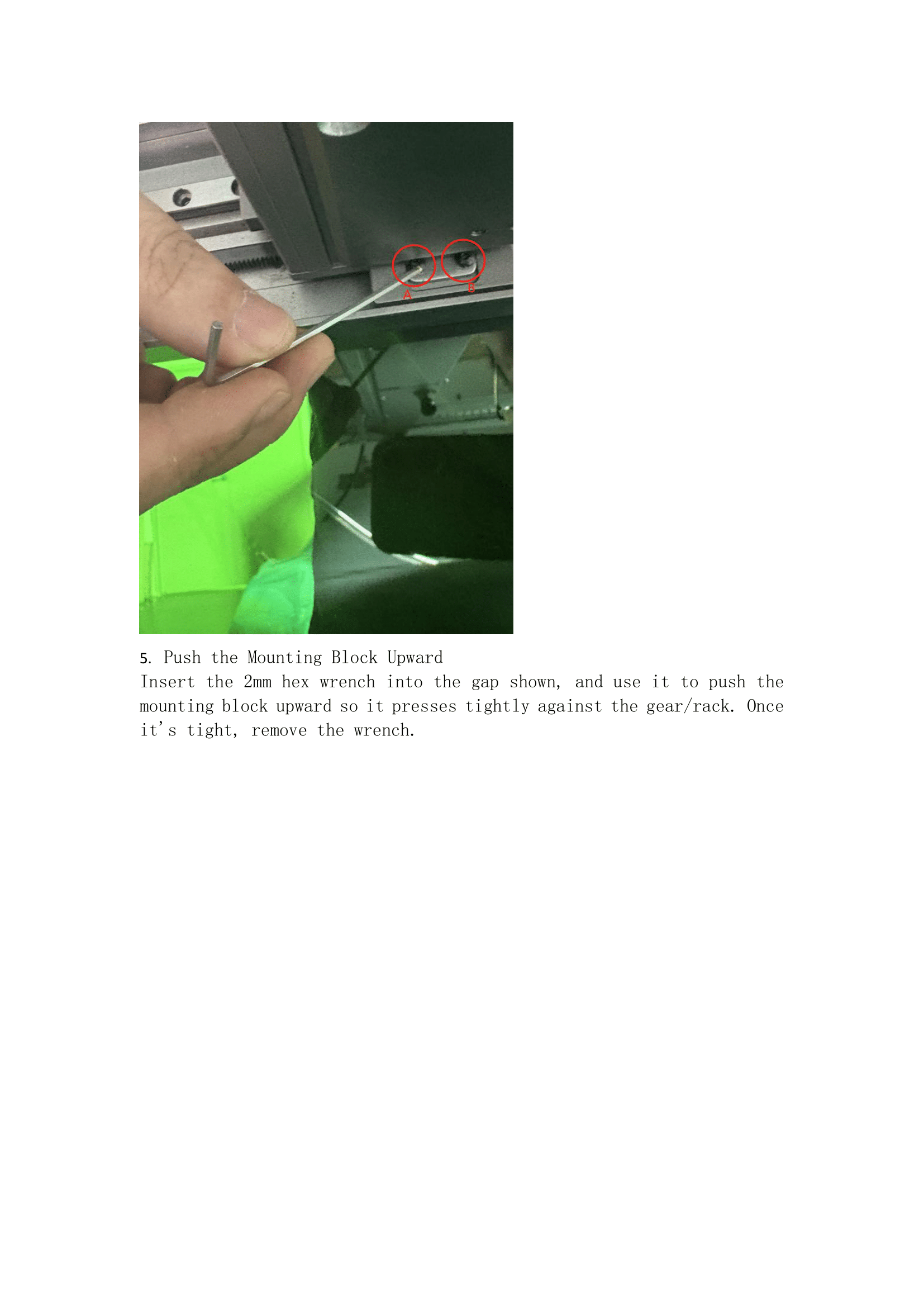

¶ 5. Push the Mounting Block Upward
-4.png)

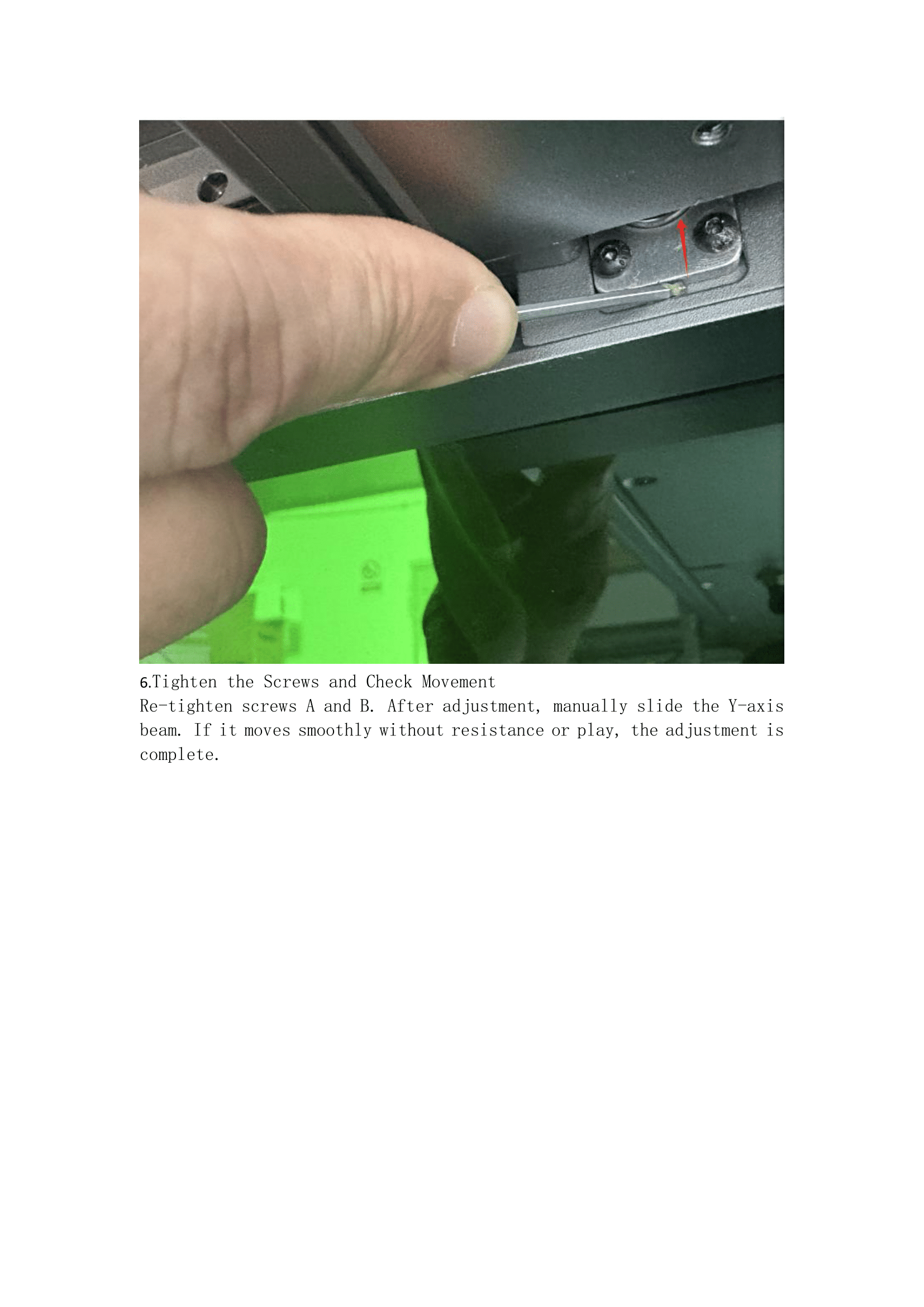

¶ 6.Tighten the Screws and Check Movement
-5.png)
